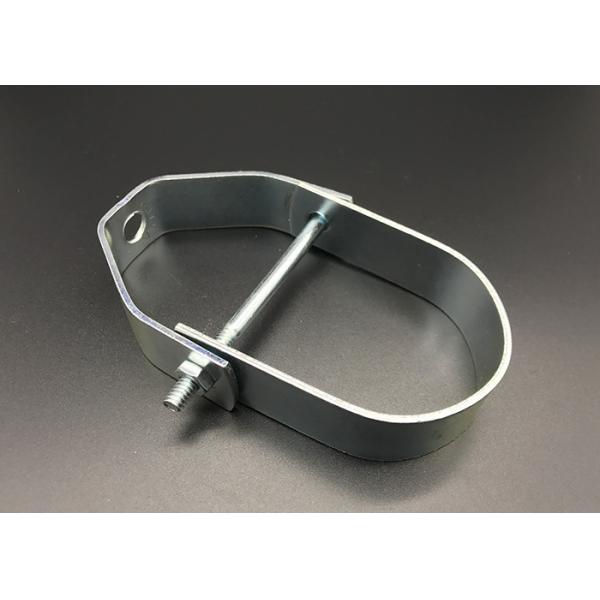

Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Surface Treatment : Zinc Plated /Galvanized/HDG

Service : OEM ODM

Model Number : KK-CH020

Certification : ISO9001 2015

MOQ : 1000PCS

Delivery Time : 10-25 work days

Sample : Available

MOQ : 1000pcs

Packaging Details : Pallet Packing,customized requirement

Price : Sent email to us

Usage : Pipe Clamp

Supply Ability : 999999/pcs/month

Material : Carbon Steel/ss304/ss316/Copper/Aluminum

Brand Name : KOKA

Package : Carton Box

Place of Origin : Shanghai

Contact Now

Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger

Products: Clevis Hanger

A Clevis hanger is a pipe accessory that loops around a pipe in order to support it. Loop hangers are similar to clevis hangers, split ring hangers, and clamp hangers, which are all examples of pipe hangers, but there are qualities that help to set loop hangers apart from the rest.

The design of loop hanger is simple but effective, looping around a pipe and connecting to a beam or ceiling for support. Loop hangers have keyed insert nuts to guarantee the loop hanger and insert nuts stay together. This type of pipe support is highly recommended for the suspension of non-insulated, stationary pipe lines.

Features:

Size range: 1/2 inches thru 24 inches
Material: Carbon steel
Finish: Black or galvanized: furnished galvanized unless otherwise specified.
Max. temp: 650°F.
Feature: Designed with the yoke on outside of lower U-Strap so the yoke cannot slide toward the center of the bolt, thus bending of the bolt is minimized.

Complies with Manufactures' Standardization Society (MSS) SP-58 & SP-69 (Type 1). Complies with Federal Specifications A A-1192A (Type 1). Complies with Underwriters' Laboratories (UL) & (cUL) (062311- EX15800),

Applications:

For the suspension of non-insulated, stationary pipe lines.

Certification:

Part No. Pipe Size Thickness(mm) Ø(mm) Finish
KK-CH020 3/4” 2.5 11 EG/HDG/SS304/SS316
KK-CH025 1” 2.5 11 EG/HDG/SS304/SS316
KK-CH032 1-1/4” 2.5 11 EG/HDG/SS304/SS316
KK-CH040 1-1/2” 2.5 11 EG/HDG/SS304/SS316
KK-CH050 2” 2.5 11 EG/HDG/SS304/SS316
KK-CH065 2-1/2” 3 14 EG/HDG/SS304/SS316
KK-CH080 3” 3 14 EG/HDG/SS304/SS316
KK-CH090 3-1/2” 4 14 EG/HDG/SS304/SS316
KK-CH100 4” 4 17 EG/HDG/SS304/SS316
KK-CH125 5” 4.5 17 EG/HDG/SS304/SS316
KK-CH150 6” 4.5 20 EG/HDG/SS304/SS316
KK-CH200 8” 4.5 20 EG/HDG/SS304/SS316
KK-CH250 10” 6 23.7 EG/HDG/SS304/SS316
KK-CH300 12” 6 23.7 EG/HDG/SS304/SS316
KK-CH350 14” 6 27 EG/HDG/SS304/SS316
KK-CH400 16” 6 27 EG/HDG/SS304/SS316
KK-CH450 18” 6 32 EG/HDG/SS304/SS316
KK-CH500 20” 8 33.2 EG/HDG/SS304/SS316
KK-CH600 24” 8 33.2 EG/HDG/SS304/SS316

Product Show:

Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger

Package:

Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger

Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger

Shanghai KoKa Industrial Co.,Ltd is a professional cable management systems (CMS) & Strut Framing systems and HVAC systems solutions provider,manufacturer .

Based on over 15 years of engineering experience to the subways, airports, shopping malls, food, beverage, petrochemical ,and pharmaceutical industries, the KOKA production of stainless steel products has become a respected and specified brand to some of the world's most recognised organisations.

KOKA products are known throughout the industry as being hygienic, high quality and to offer exceptional value.

KOKA offer an extensive range of products ex-stock and can therefore process your orders with a short lead time, with the majority of parts available on a next day delivery.

KOKA specialises in manufacturing the following products in SS304 , SS316 ,carbon steel.

KOKA to provide personalized demand and global sourcing solutions for global customers,always adhere to the product quality first,Continuous development and optimization design, with user-friendly, simple installation to satisfied customer needs, and strive to reduce customer costs, to adapt to the global competition, With global customers to cope with the complex economic environment, to achieve common value growth of the target.

Galvanized Steel 3-1/2'' Pipe Adjustable Clevis Hanger

FAQ:

Q1: Are you manufacturer?
A: Yes,we are factory ,We have stamping and injection factories.
Q2: What services can we offer?
A: We can OEM and ODM,We have a strong design team,we can provide drawing.
Q3: What information need for quotation?
A: For example:

1: what material(carbon steel/Q235/SS304/SS316)

2: what size do you need ?
3: what surface finished( zinc plate/HDG/powder coating/copper plated)?
Q4: Do you provide free samples?
A: Yes ,you can get the free samples
Q5: What is your payment terms?
A: 30% T/T deposit,balance will be against each copy of B/L;
Q6: How about the delivery time?
A: According to your order list and quantity,Normally delivery in 20-25days.


Product Tags:

Galvanized Steel Clevis Hanger



Adjustable 3-1/2'' Pipe Hanger



Strut Pipe Clamp Hanger
